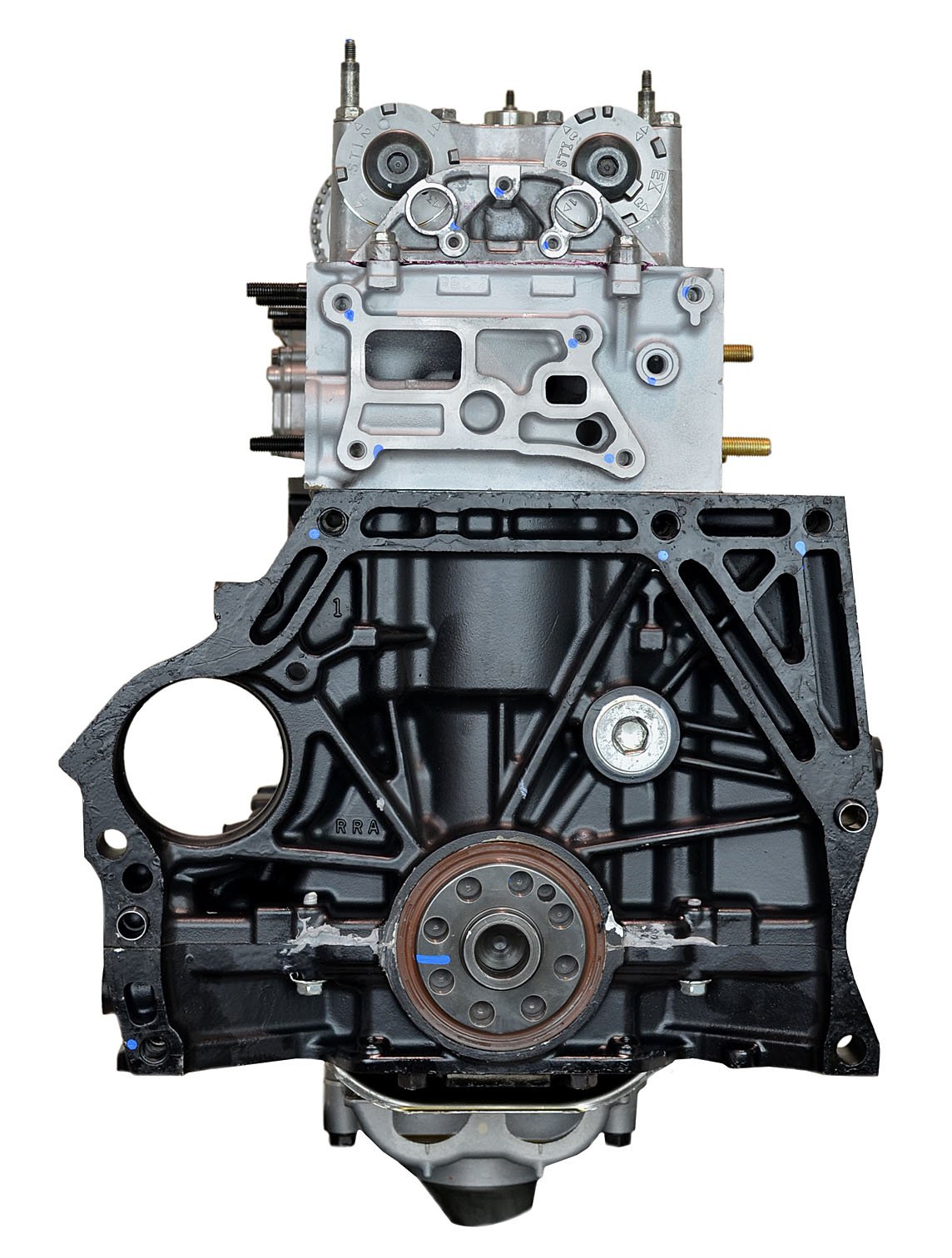

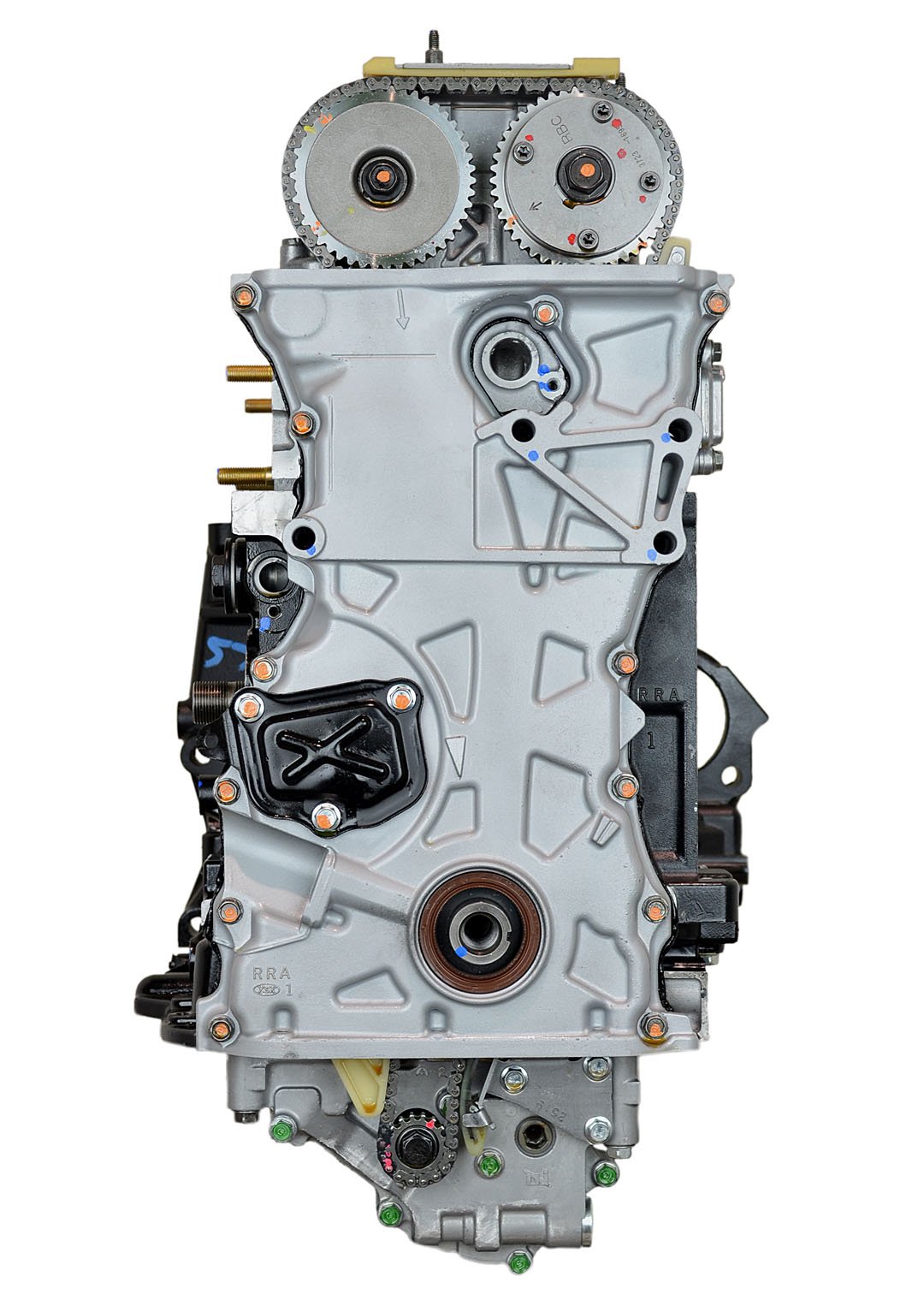

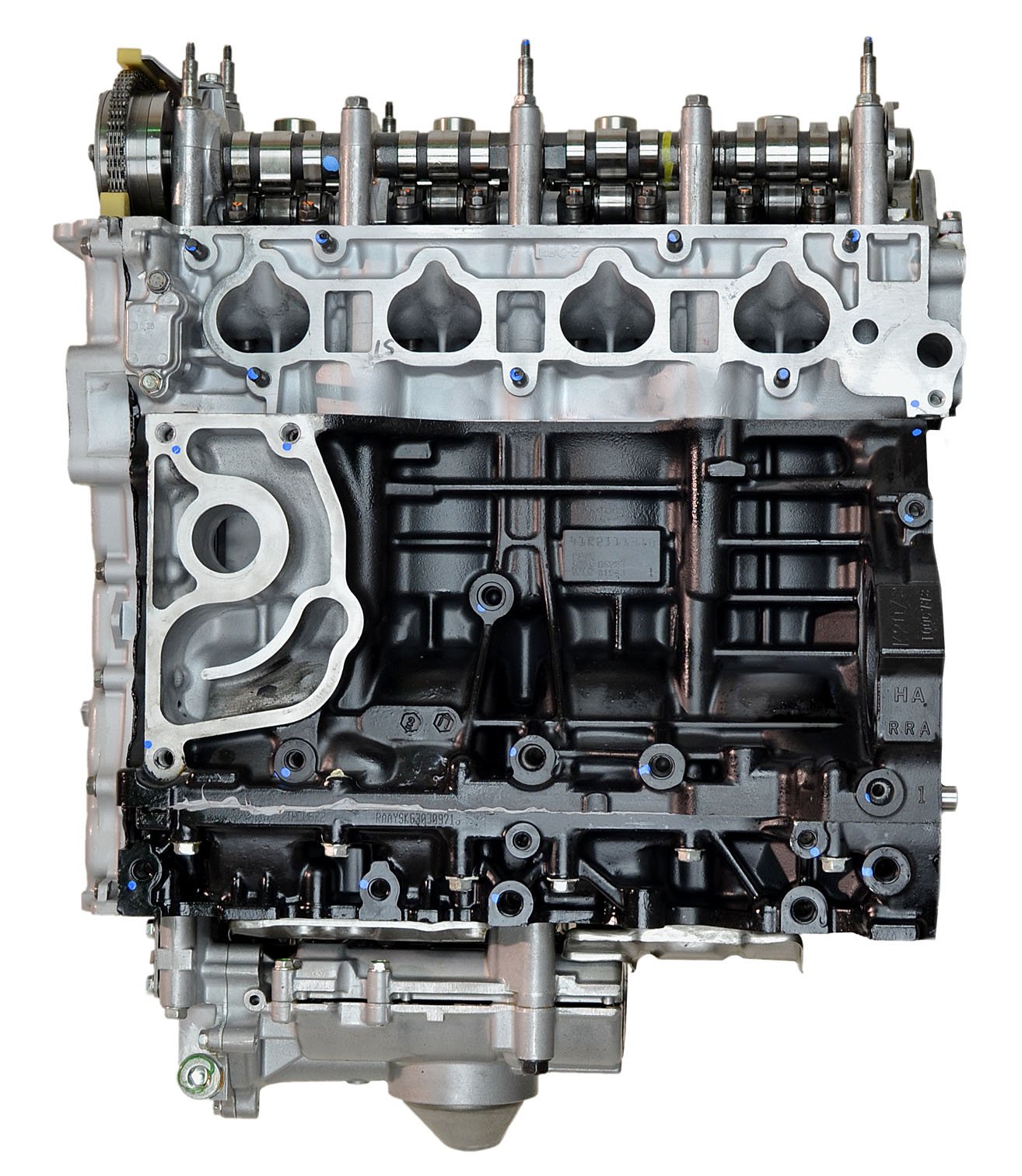

K20Z3 Remanufactured Engine
The K20Z3 remanufactured engine is a professionally remanufactured
2.0L L4 engine designed for select Honda Civic and Acura CSX applications.
Built around the Honda K20Z3 engine platform, this replacement engine is
thoroughly disassembled, cleaned, inspected, machined and reassembled as
part of a comprehensive remanufacturing process.
The K20Z3 features a 2.0L displacement, four-cylinder configuration,
aluminum block, aluminum cylinder head and DOHC 16-valve design. This
combination makes the K20Z3 a well-known member of Honda’s K-series engine
family and a popular application for replacement-engine buyers.
Every engine goes through multiple stages of inspection and preparation.
Required components are replaced during the rebuilding process, and the
completed assembly is SIM tested to help verify compression, oil pressure,
cooling-system pressure and overall build quality.
Honda K20Z3 2.0L Engine Highlights
- Honda K20Z3 2.0L L4 engine
- 2.0L / 1998cc displacement
- 4-cylinder configuration
- DOHC 16-valve cylinder head design
- Aluminum engine block
- Aluminum cylinder head
- Gasoline fuel type
- Fully disassembled and professionally remanufactured
- Precision machining and component inspection
- Required new components installed during remanufacturing
- SIM tested following final assembly
Professional K20Z3 Engine Remanufacturing Process
A quality Honda K20Z3 remanufactured engine requires more
than simply replacing a damaged component. Each engine is processed through
a structured remanufacturing procedure designed to restore the engine’s
critical components and operating characteristics.
1. Complete Disassembly and Deep Cleaning
The engine is completely disassembled before the rebuilding process begins.
Components are thoroughly cleaned to remove accumulated oil, carbon,
contaminants and residue. Aluminum components are thermally cleaned where
applicable.
2. Component Inspection
Engine components are visually inspected for wear, damage and other
conditions that could affect serviceability. Appropriate metal components
can undergo Magnaflux testing to help identify microscopic cracks and
fissures that may not be visible during a standard visual inspection.
3. Precision Machining and New Parts
Required machining operations are performed to restore critical engine
surfaces and dimensions. Deck surfaces are CNC machined, and required
replacement components are installed during assembly.
Depending on the application and condition of the engine, new components
may include bearings, pistons, rings, lifters, oil pump, gaskets, Viton
valve seals, freeze plugs, galley plugs and timing components.
4. Final Assembly and SIM Testing
After reassembly, the engine is SIM tested. The cooling and oil systems
are pressurized and the crankshaft is spun at high RPM to help verify
compression, oil pressure, cooling-system pressure and overall build quality.
K20Z3 Engine Vehicle Fitment
This K20Z3 replacement engine is listed for the following
Honda and Acura applications. Always compare the original engine code,
casting numbers and vehicle configuration before ordering.
| Year |
Make |
Model |
Engine |
| 2006–2011 |
Honda |
Civic |
L4 2.0L / 1998cc |
| 2007–2010 |
Acura |
CSX |
L4 2.0L / 1998cc |
Important: Fitment information should be verified before
purchase. Engine compatibility can depend on the exact model year,
engine code, casting numbers and vehicle configuration.
How to Identify a K20Z3 Engine
Correct engine identification is especially important when purchasing a
replacement engine. The supplied application data identifies this engine
using the K20Z3 engine code and associated casting numbers.
- Engine Code: K20Z3
- Block Casting: K20Z3, RRA
- Crank Casting: PRB
- Head Casting: RBC
- Cam Casting: RPB-RPB
- Casting Location: Left bell housing stamped K20Z3, cast RRA
Casting numbers are useful for identification, but they should be checked
against the complete vehicle application before ordering.
K20Z3 2.0L Engine Specifications
| Engine Manufacturer Code |
K20Z3 |
| Engine |
Honda K20Z3 |
| Displacement |
2.0L / 1998cc |
| Engine Type |
L4 |
| Number of Cylinders |
4 |
| Number of Valves |
16 |
| Head Type |
DOHC |
| Fuel Type |
Gasoline |
| Engine Block Material |
Aluminum |
| Cylinder Head Material |
Aluminum |
| Block Casting |
K20Z3, RRA |
| Head Casting |
RBC |
| Crank Casting |
PRB |
| Cam Casting |
RPB-RPB |
| Weight |
190 lbs |
| Dimensions |
36 × 36 × 36 in |
Honda Civic 2.0L Replacement Engine
If your Honda Civic requires a complete engine replacement, this
Honda 2.0L replacement engine is listed for 2006–2011
Civic applications equipped with the K20Z3 2.0L engine.
Before ordering a Honda Civic K20Z3 engine, compare your
original engine identification and casting information with the product
specifications above. Proper application verification helps ensure that
the replacement engine matches the vehicle.
Acura CSX K20Z3 Engine
The K20Z3 engine is also listed for 2007–2010 Acura CSX applications with
the 2.0L four-cylinder engine. If you are replacing an Acura CSX engine,
verify the engine code and application details before placing your order.
Looking for a K20Z3 Replacement Engine?
Choosing the correct K20Z3 replacement engine starts with
accurate vehicle and engine identification. Year, make, model, engine code
and casting information should all be considered before purchasing.
This remanufactured K20Z3 engine is processed through cleaning, inspection,
machining, assembly and SIM testing to provide a complete replacement
powertrain solution for compatible applications.
Need Help Confirming K20Z3 Fitment?
Engine compatibility can depend on the exact vehicle application,
engine code and casting numbers. If you are unsure whether this
K20Z3 remanufactured engine is the correct replacement
for your vehicle, contact Mechron Tech before ordering.
Contact Mechron Tech for application and
engine-identification assistance.
